Petrochemical Industry Refractory Solutions
Project description

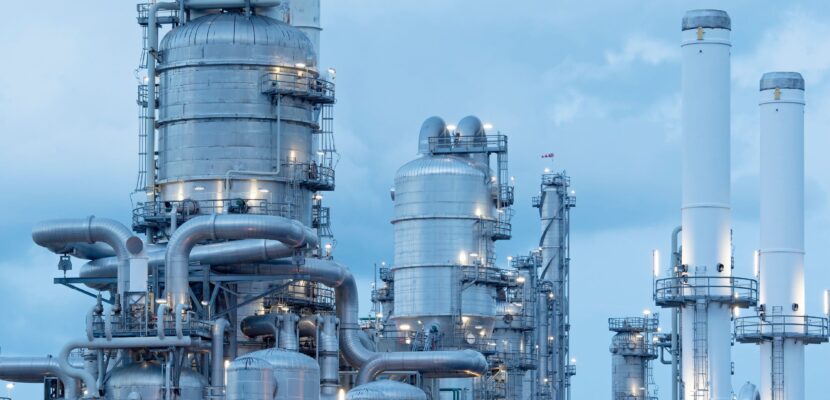

Petrochemical plants rely on high-temperature equipment such as fired heaters and ethylene crackers, where refractory linings help protect equipment and support efficient heat transfer. These linings face demanding conditions, including thermal cycling, process-related chemical exposure and abrasion. Different furnace zones therefore require suitable working-lining and insulation materials.
YCC helps petrochemical operators source refractory castables, bricks, insulation materials and other refractory products through its supply network. We also support projects through Surveys & Inspections, On & Off-Site Installation, Routine Maintenance, Shutdowns & Overhauls, and Provision of Skilled Staff.
Key Details
- Applications: Fired Heater / Ethylene Cracker
- Critical zones: Upper wall/convection zone, lower wall, burner tile and floor
- Operating conditions: High temperatures, thermal cycling, chemical exposure and abrasion
- Material options: Dense and insulating castables, refractory bricks, ceramic fibre blankets, insulation boards and specified precast
- Project support: Material sourcing, inspections, installation, maintenance, shutdowns and skilled personnel
Key Refractory Considerations
Application-Specific Materials
Different furnace zones require working-lining and insulation materials suited to their respective operating conditions.
Thermal Cycling Resistance
Repeated heating and cooling can stress refractory linings, making appropriate material selection and installation important.
Abrasion Resistance
Selected areas may require materials suited to erosion and wear caused by gas flow, dust or process conditions.
Chemical Compatibility
Refractory materials should be assessed against the process atmosphere and chemical exposure in the intended application.
Condition Assessment
Surveys and inspections can help identify visible deterioration and areas that may require further assessment or repair.
Burner & Floor Protection
Burner tiles and furnace floors require materials suited to their local thermal and mechanical conditions.
Thermal Insulation
Suitable insulation materials can help limit heat transfer through the furnace lining and support thermal efficiency.
Shutdown Planning
Coordinating sourcing, personnel and installation requirements helps organise refractory work around planned maintenance windows.
Applications & Relevant Products
- 1
- 2
- 3
- 4
Upper Wall / Convection Zone
| Sections | Products |
|---|---|
| Working Lining | Hy-Cast 900 / Hy-Cast 850Li / Hy-Cast MW 130 Li Ceramic Blanket 96-160 Kgs/m³ |
| Insulation Lining | Hy-Cast 450 / Hy-Cast 600 Ceramic Blanket 96-160 Kgs/m³ |
Lower Wall
| Sections | Products |
|---|---|
| Working Lining | ASTM SERIES ARM 28 / ARM 26 |
| Insulation Lining | ASTM SERIES ARM 23 Insulation Board / Ceramic Fiber Blankets |
Burner Tile
| Sections | Products |
|---|---|
| N/A | Hy-Cast 1600 / Hy-Cast 1700 / Hy-Cast 1797 |
Floor
| Sections | Products |
|---|---|
| Working Lining | ASTM SERIES ARM 28 / SK 34 Firebricks |
| Insulation Lining | ASTM SERIES ARM 23 Insulation Board / Ceramic Fiber Blankets |
Discuss Your Petrochemical Project
Whether you are sourcing materials for a new lining, replacing worn refractory components or preparing for a planned shutdown, YCC can help assess your requirements.
Share your equipment type, affected furnace zone, available specifications and operating conditions with our team to discuss suitable material options and related refractory services.
