Aluminium

refractory solutions aluminium industry

Aluminium Industry

The aluminium industry requires refractories that can withstand molten metal, prevent contamination, and reduce heat loss. YCC offers high-performance refractory materials specifically engineered for aluminium smelting, casting, and holding furnaces—ensuring operational stability and product quality.

It Includes

Excellent resistance to molten aluminium and corrosion
Prevents metal contamination and buildup
Strong thermal insulation reduces energy consumption
Extended lining life for lower maintenance frequency
Optimized performance in both static and dynamic applications

Applications

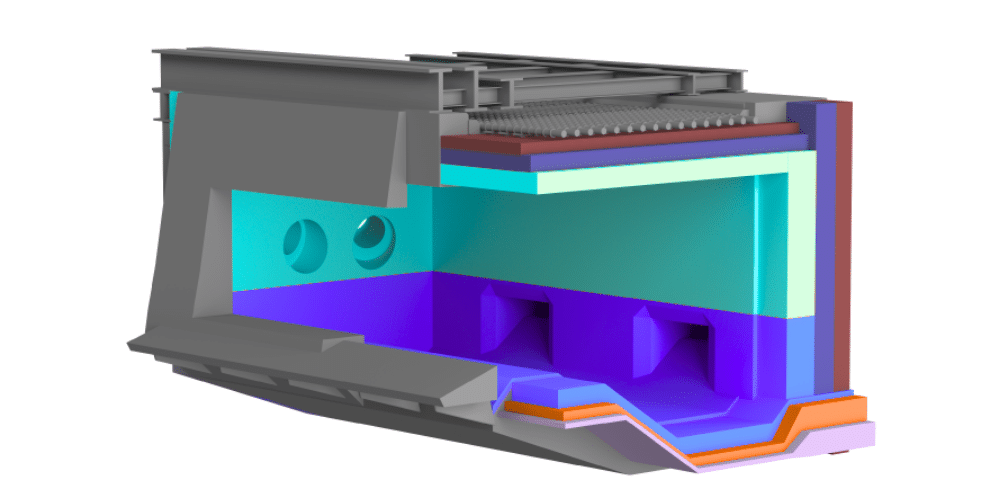

Roof

Sections	Products
Working Lining (1st Layer)	Hy-Cast 1600 / Hy-Cast LC 16 / Hy-Cast LC 14
Insulation Lining (2nd Layer)	Hy-Cast LW124 / Hy-Cast MW23
Insulation Lining (3rd Layer)	Ceramic Fiber Blankets
Anchoring System	Ceramic Anchor Bricks / SUS 304 / SUS 310

Upper Wall

Sections	Products
Working Lining (1st Layer)	Hy-Cast 1600 / Hy-Cast LC 16 / Hy-Cast LC 14
Insulation Lining (2nd Layer)	Hy-Cast LW124 / Hy-Cast MW23
Insulation Lining (3rd Layer)	Bricks - ARM B2 / ARM B4 / ARM B5 / ARM 23 Ceramic Fiber Blanket / Insulation Board
Anchoring System	Ceramic Anchor Bricks / SUS 304 / SUS 310

Lower Wall

Sections	Products
Working Lining (1st Layer)	Hy-Cast Gibcrete N / Hy-Cast NW
Safety Lining (2nd Layer)	Hy-Cast LW124 / Hy-Cast MW23 Hy-Cast 1600
Insulation Lining (3rd Layer)	Bricks - ARM B2 / ARM B4 / ARM B5 / ARM 23 Ceramic Fiber Blanket / Insulation Board

Bottom / Floor

Sections	Products
Working Lining (1st Layer)	Hy-Cast Gibcrete N / Hy-Cast NW
Safety Lining (2nd Layer)	Hy-Cast LW124 / Hy-Cast MW23 Hy-Cast 1600
Insulation Lining (3rd Layer)	Bricks - ARM B2 / ARM B4 / ARM B5 / ARM 23 Insulation Board
